Tiling Prep and Relocating a Heater Vent

Gotta keep chugging through this bathroom renovation to get to the pretty afters ya’ll! It’s a big change! But before I can show you that fun stuff, let’s go through the nitty gritty of the renovation. This is a real life blog. Let’s look at the ugly.

Before I could go much further in my bathroom, I needed to get a few things done. Post-insulation, my next step really should have been to drywall, but that was going to take more than just one set of hands, so I turned to the next item on my to-do list: prepping for tile! The original disgusting and uncleanable sheet vinyl floor was doing no one any favors. It wasn’t as bad as the kitchen (which was somehow disintegrating), but boy was it gross.

img_9039

Here’s a close up picture from demo so you can appreciate it EVEN MORE! IMG_0154

It was gross and it wasn’t staying. I had debated one hundred different mini-hex tile patterns before setting on a much more simple option from Home Depot. This shot of the overall bathroom palette really showcases the tile too. That high contrast has me all kinds of giddy!

img_0129

Before tile, comes prep though. It was time to conquer those vinyl floors! For that I headed out for more supplies. I picked up the following at Home Depot one evening.

First I cleaned out the bathroom of tools and random junk and swept the entire space to start with a clean slate! I measured my concrete board and cut of the excess length using a box knife again. If I could go back I would have used a circular saw and speeded things up, but at the time I didn’t own one. By going over the cut a few times with a box knife I was able to create a weak point which allowed me to then snap that section off.

Land of Laurel | Cutting HardieBacker

Then I had to cut a hole for the toilet. First I measured where that lined up on my sheet of concrete board and drew an outline. I took out my drill and drilled some holes in each of the corners.

Land of Laurel | Drilling Hardiebacker

Then I took out the box knife again to cut the rest of the hole out. Spoiler alert: I still snapped the HardieBacker in an unfortunate place that wasn’t my intention . Oh well! Just another seam to cover! That first piece was fairly easy to lay down in place though, but before I could move on to the second piece, I had some other work to do!

I originally planned to place a pedestal sink in this room and that sink was going to go right where the oddly almost square heater vent was. Well that wasn’t going to work! When I filed my mechanical permit for my new bathroom vent fan, I added on two quick HVAC ducting tweaks to the permit. This was one of them! I picked up more supplies from Home Depot (I was averaging 2-5 Home Depot visits per week for all of November and December!): a 90° angle turn register box, a couple of flexible angle pieces, and some foil duct tape (actual duct tape!). I used a small battery powered circular saw (borrowed from my neighbor Erik of course!) to cut a new hole the size of the register box in the floor and through the subfloor. Because there is a crawl space beneath the bathroom, I was able to climb around in there and use the new ducting pieces to extend the existing ducting about 1 foot so a new normal sized duct register would be closer to the bathroom entry wall and parallel to that wall.  I secured it all together with the foil ducting tape (NOT regular duct tape!) but waited to attach the register box until the HardieBacker was done.

I was exceedingly proud of myself for extending the ducting too! But then came the hole patching part of this job. I was trying to avoid going back into the basement crawlspace, because it’s gross down there and I hate it, so I was determined to patch the floor from above. I used some clamps I already owned to secure a couple of scrap wood boards in place and aligned with the level of subfloor. Then I just used my drill to tighten some screws through the floor and into those boards.

Land of Laurel | Patching Hole in Floor

I cut a piece of plywood to the dimensions of the missing floor and then screwed that into the new supports as well as an exposed floor joist. An easy floor patch! It seems crazy to put in this effort to move the vent 3″ over, but by turning the vent 90″ and using a modern size I was able to save a lot of floor space. This would have allowed me to have a pedestal sink too, but I later switched to a wall mounted sink and in this spot now lives a big basket of toilet paper.

Land of Laurel | Patched Hole in Floor

Once the floor was patched and the new register vent in (combined a two hour project), I was able to finish laying the HardieBacker! I cut the board to size and noted where the new vent location was. I made sure to dryfit the board before I grabbed the thinset again. I used the flat side of the float to glob a bunch of thinset onto the floor and then smeared it all around.

Land of Laurel | Spreading Mortar

It covered the floor patch job pretty easily and helped mitigate any change in height between my patch job and the existing floor. I then spread the thinset all over a 2 foot deep section of the floor until it was about 1/8th inch thick.

Land of Laurel | Thin Coat of Mortar

A quick switch to the square grooved side of the float allowed me to then make some nice lines in the mortar. This helps to establish some suction once the HardieBacker is laid on top. My grooves didn’t have to be perfect or straight, they just had to be there! See how you can no longer tell where my floor was patched? That’s the end goal! I had laid the piece by the toilet the night before and then returned then next day to do the remaining section. You can see above where I accidentally broke the backerboard trying to cut the toilet hole! Whoops…

Land of Laurel | Making Grooves in Mortar

Once the floor was covered with thinset grooves I was able to take my sheet of backerboard and lay it on top pretty easily. I left the boards in place and allowed the mortar to dry overnight, before returning the following evening to finish up. I took more mortar and smooshed it into the gap between the sheets of HardieBacker, wiping away any excess. Then I cut strips of the mesh tape to length and gently smoothed it over the mortared seam with my hand. The goal is to close the gap and then smooth the thinest layer of mortar over the tape. You can see below too that all this went down before the plumbing inspection was finalized so my new shower pan was full of gross water!

Land of Laurel | Taped Hardiebacker

At this time I also took out my drill and screwed the special HardieBacker screws into the floor. The screws kindly came with a special drill bit so I didn’t even have to worry about that. The HardieBacker needs to be screwed in every foot so further strengthen it’s connection to the subfloor. You can see how many screws that adds up to quickly! Unfortunately, I have the arm strength of a 2 day old newborn child and I couldn’t get any of the screws to recess into the HardieBacker! It was so frustrating, because this is essential to having a nice flat tile floor! I went over to my neighbor Erik’s house where he was working on his kitchen and borrowed his impact driver for an hour. With that, I was able to get all my screws in place with minimal effort. Seriously, ladies and gents, go buy an impact driver. If you ever need to screw anything in, a drill is just not up to the task! It’s better for making holes not filling them. The impact driver prevents me from stripping all my screws and makes screwing things in much easier. After seeing the difference between using my drill and Erik’s impact driver, you can bet your bottom dollar I bought myself an impact driver the next day. Shout out to Jeff Senn at Home Depot who spent a good hour with me debating the best model and brand of impact drivers. I landed on this Milwaukee combo kit which threw in a hammer drill and had some extra oomph to make up for my baby arm muscles. I’ve yet to use that hammer drill though, so perhaps I should have gone with a single tool…

I wasn’t done with the floor underlayment after I got all those screws drilled in though. I had measured during my dry fit of the second board where the new vent location was, but waited to cut it out a until after the HardieBacker was installed. Now it was time to knock this off the to-do list as well! I clued in this time and used a larger 1″ drill bit to make bigger holes in the corner of the vent this time and then cut from those. Then I cut it off from there with a circular saw borrowed from my contractor neighbor Erik.

Land of Laurel | Drilled HardieBacker

It came out much more quickly than using a box knife, I’ll tell ya that! then I got out a good ole hammer and some baby brad nails and drove them through the register box into the wood subfloor, securing it all together.

Land of Laurel | New Floor Register

Luckily it all worked out and then new matte black vent cover I picked up from Home Depot fit perfectly! I was more proud of this duct work than any other work in the bathroom thus far. It felt so very adult to do this quick switch! Woot woot! This room was coming together now!

Land of Laurel | New Vent Opening

And just like that, I felt I could walk barefoot in one more room at Berrybrier! Not needing shoes to protect your feet from gross bathroom floors is pretty amazing, let me tell you! Now this room was ready for tile and drywall and all the other bathroom renovation steps. It felt so good!

Have you ever prepped for tile? Thinking about getting started? You can totally do this. It’s EASY! I was shocked by how easy it was!

Advertisements

Adding Insulation to the Bathroom

Now that you’ve seen the big transformation of the exterior of the house, let’s get back to the ugly, shall we? The bathroom was chugging along here at Berrybrier, slowly but surely. My progress was actually pretty good considering I ran home from work every day, stopped eating dinner for November and December, and got straight to work from 5pm to 9:30-10pm during the week and pretty much all day on every weekend. It was a backbreaking schedule I wouldn’t recommend! But, I desperately needed a working bathroom so I could, you know, live in my house!

So after the electricians finished their work and the plumber did his rough in, I insulated the bathroom straight away! Insulation cost about $50 bucks at Home Depot, but I ended up with WAY more than I needed. There are other projects around I can use it for (the dormer, the small powder bathroom off my bedroom, etc), so I don’t mind the excess. I’m tempted to hire someone to blow in insulation in the exterior walls down the line, but it’s not in the budget right now. I’m up for trying to make this house as warm as possible, one room at a time! Alas! What do those of you with old uninsulated houses do? How do you keep warm? I didn’t turn on my ancient heater until late November 2017, when I got really desperate and until then it was so COLD in here!!

Back to the insulation though: this is easy. Like, the easiest. You can do this if you have one hand free. Insulation is designed to be the standard width of the distance between studs (which are set at 16″ on center) and stays in place with friction. It really takes no time at all to whip out a wall, especially if it’s a full height wall without obstacles. The steps are über simple!

  1. Wear long sleeves, pants, gloves, and a respirator mask.
  2. Measure height of space needing insulation.
  3. Cut insulation
  4. Stick insulation in between studs.
  5. The end! You’re done! You just insulated something!

It was super quick to knock out the exterior wall of the bathroom. I used a utility knife to cut the insulation shorter around the window. I’ve since learned that this cheap tool makes cutting insulation EVEN EASIER, so if you pick it up at Home Depot, it’s well worth the $10 bucks. The insulation knife cuts all the way through the insulation at one time while the basic box cutter take a few slices on the same line to cut through the paper and the backing. The pictures I have of the space aren’t great. They were mostly taken at night with my work light illuminating the space since the electrical wasn’t done!

Berrybrier | Insulation.jpg

The ceiling takes a little more work and requires at least two hands because you have to hold the insulation up and secure it. I used my staple gun to shoot staples into the ceiling joists securing the insulation. I also left some extra room for the electrical for my future can light. I erred on leaving more room around the electrical than I should have. The new electrical is fine to have butted against the insulation, but I gave the old electrical a wide berth. I do not want any house fires! I did use extra smaller pieces of insulation to fill in all the spaces around the walls of the bathroom, hoping that added insulation would help keep this space warmer!

Berrybrier | Can Light Location

Overall insulating the bathroom took one evening to complete! A short project with obvious progress is always pretty great. You can see above that my door way does not have the proper 4×12 header it would get these days. It’s an old house and this wall is not structural, so I left it this way. Plus I had bigger things to conquer, like drywall! And tiling! And cleaning up the disaster that was my kitchen…

Berrybrier | Kitchen Mess

Yeah the kitchen became the tool library / trash room / storage room and it was absolutely insane looking. For months. This room looked horrific from September 2016 to March 2017. Next time someone yells at you for leaving a dirty shirt on the floor, point them to this blog. They haven’t met crazy messy yet!

Have you insulated a room before? Worked on a bathroom reno in house you were living in? How did you survive?! My neighbors did their only full bathroom recently and they told me they’d been showering at the gym for 4 months!

New Roof For Berrybrier + a Dormer!

Even before I bought Berrybrier, I knew the house needed a new roof. The listing actually mentioned this and – despite not seeing any leaks after a strong rain during escrow – it clearly needed to go. It was a hot mess of a roof in a city where waterproofed roofs are pretty dang critical. This was no DIY project my friends. It was time to bring in the professionals!Berrybrier | Roof.jpg

Although it’s not currently in vogue, I knew I wanted to replace the roof with another light colored shingle roof. The Portland summer sun is hot, hot, hot! When it bakes down on the house the upper floor becomes an oven of trapped heat. The lower level of the house manages to stay cool if it’s just a single hot day or even two hot days in a row, but any more than that and the house gets sweltering. A light colored roof can do wonders in keeping a house cooler. I picked Owen’s Corning’s Sierra Grey which I knew would go well with the exterior paint color I had in mind.

There was one other thing that I wanted to do when I replaced the roof though: add a dormer. The layout of the upstairs bedrooms with the stairwell made the house a perfect candidate for a dormer right at the top of the stairs. You see, when you walk up the stairs at Berrybrier there’s a large landing between the two bedrooms and across the landing from the stairs is a little door to a storage space. You can see the little crawl space door at the top here.

DSC_0287

Well a simple dormer added at the location of this crawl space could launch a huge amount of potential for Berrybrier. Adding a room in this space with a window would also allow more light into the stairwell. The future potential though is huge. A bathroom at this location would not only add incredible convenience to the upper floor bedrooms, but it would also turn this house into a 3 bedroom 2.5 bathroom house effectively doubling its value from my purchase price. Equity, baby! It’s important!Berrybrier | Crawl Space

I went about interviewing roofers shortly after I bought the house and trying to draw up plans for a dormer to get approved by the city development department. That was stressful! And then there was the whole manner of finding someone who could build the dormer too. A couple weeks into my search I mentioned my need for a roofer to Erik from next door who – of course – had a guy. A few days later Rigo was at my house and he said he could build the dormer too. Woohoo!

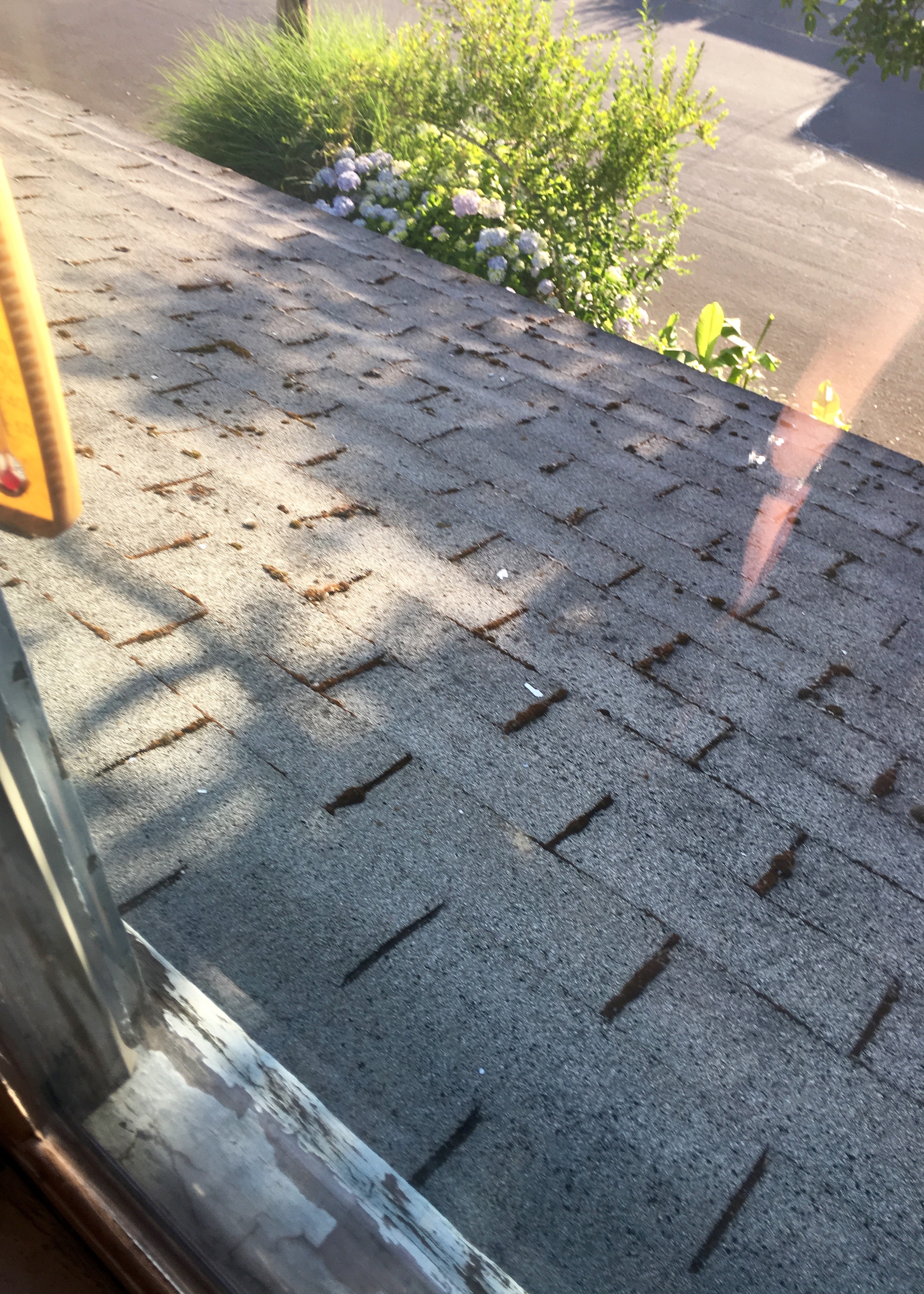

After inspecting the roof, Rigo was able to tell me that it had the original cedar shingle roof below two layers of asphalt shingles. This meant, I needed a complete tear off of all three layers of roofing and a new layer of plywood sheathing before the new roof went on. Of course, this is about triple the work of adding a new asphalt single roof and thus about triple the cost. Oh the joys of homeownership!

Berrybrier | Roof Shot

Off to the computer I went drawing up plans for a dormer addition. It took me about a week of a couple hours work after my 9-5 job to complete the plans. I was able to go to the Portland Development Bureau’s homeowners’ night and get my drawings looked at after working hours. It’s a busy Thursday night at homeowners’ night and after waiting two hours I thought I would have to go home without a permit. Luckily, they squeezed me in right at the end and approved my plans quite quickly! Even better, Rigo and his crew were able to start work the same week I finally got permits for the addition of the dormer!

The first thing they did was rip off the entire roof! It was the very bitter end of last September at this point, but 2017 was a hot, dry summer and we managed to avoid any rain. I know, hard to believe it’s Portland, right? They spent about just a couple of days with a crew of 4 or 5 guys to rip off all three layers of roofing. The sheathing then took another couple of days. They layered waterproofing over the sheathing very quickly. They split the roof side by side and did demo, sheathing, and waterproofing on one side before moving to the other. This kept an assurance that just in case it did rain my house wouldn’t end up flooded! I wish I’d gotten a picture of this crazytown Frankenstein roof, but the guys did it so quickly while I was at work a basically blinked and missed it!

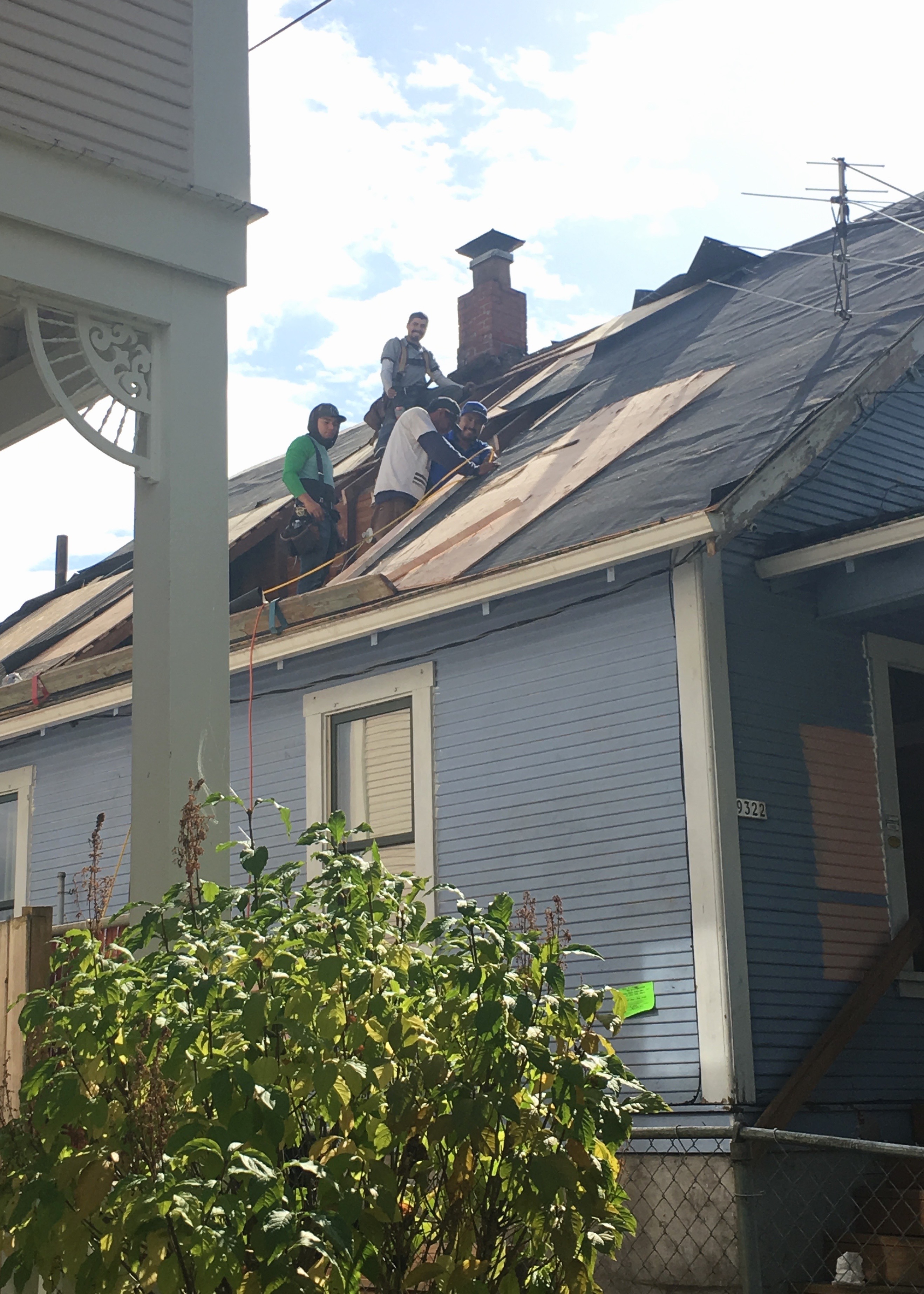

They did all of this work on the roof in the existing plane of the roof before on Saturday October 7th in the morning a crew showed up and cut a GINORMOUS hole in my roof! It was amazing to watch them just take a bunch of saws and just go at it! Here’s all the guys smiling once the hole was complete and they were ready to start the next phase of work.

Berrybrier | Whole in the Roof

Within just a few days, they’d built the shell of the dormer and completed the roof! I was amazed that just four days later the dormer went from a dream and a hole to an entire new room! From the outside, it looked like it belonged. I wanted an addition that looked intentional, like it could have existed from the beginning and this one had that vibe. Sure, it was only a shell that first week – just enough to keep the water out – but it felt right!

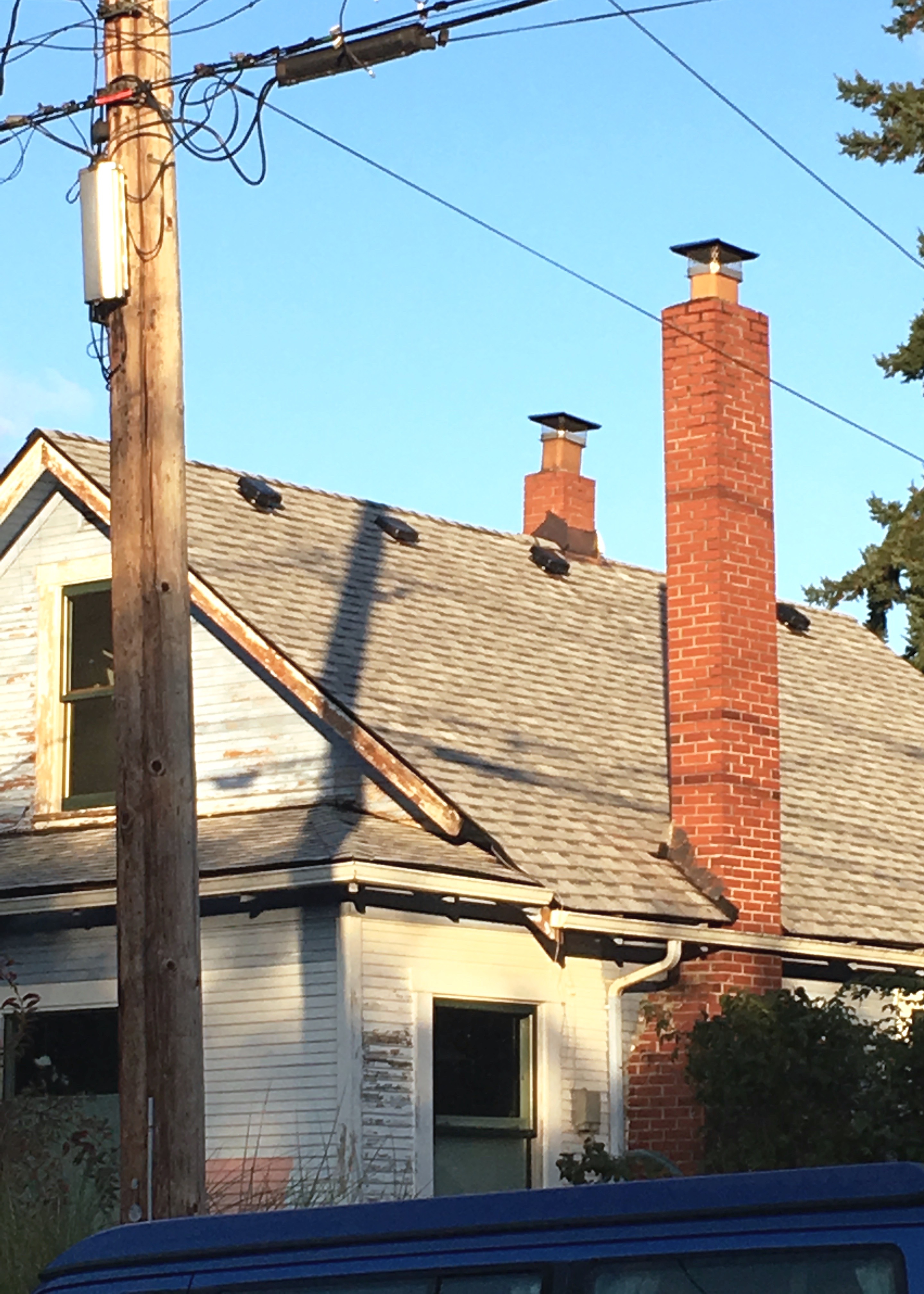

One thing I wasn’t in love with though? The dark black roof vents on the opposite side of the roof. They looked jarring against the light grey shingles and stood out way too much for my liking. I asked Rigo about them and he was quick to let me know they also made light grey ones (like were on the old roof) and he could switch them out in a couple of weeks. Yay!Berrybrier | Black Vents

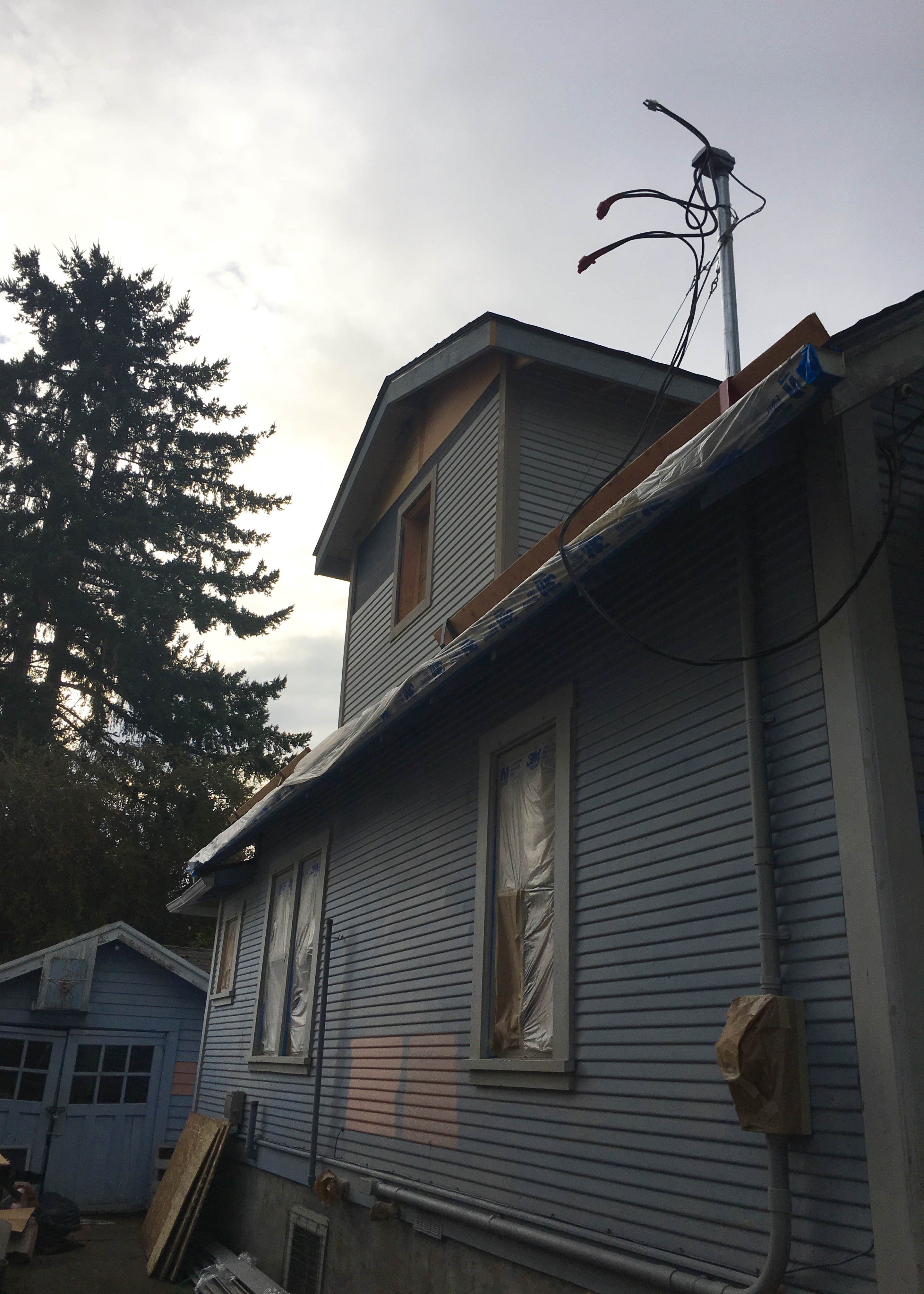

Back to the dormer though! A quick couple days later and the dormer was sided and trimmed out to match the house. The guys finished up work on the interior of the dormer, adding appropriate studs and structural elements. The only remaining item was the window… which was on back order until November of course! Brrrrr! The weather was starting to get cold now and there was still a gaping hole in my house! A normal person would have selected a different window that was more readily available. But not me! See those green aluminum exterior wood interior windows? I was duplicating that in the dormer, no matter what!

Berrybrier | Dormer.jpg

This was a long phase of a crazy looking house, but wrapping up the new roof was a huge relief, despite the $12 grand now missing from my bank account, I felt like I’d really gained a sense of security knowing water wasn’t going to start pouring in one way or another. The dormer came in a 4k plus an almost $500 window. Both were huge investments in the house, the dormer obviously was an optional add, but the pricing felt right and the timing was good to ensure everything was waterproofed together.

Waiting on the window proved to be the most difficult thing due to the weather. The house was freezing! I slept in my sleeping bag in order to stay warm. The house felt like a stranger at this point because so much was going on. See that picture above? The windows were all taped off for painting, the new electrical meter and service had been rewired by the city, everything was happening all at once and boy did I have a thousand things to do! More on that soon…
