Unexpected Plumbing Repairs: Cutting Cast Iron Pipe and Repairing the Sewer Line

Nothing like a Thanksgiving dinner to clog the sink, right? That’s exactly what happened to me on Thursday evening! My sister and I were working on doing some dishes, she had a full sink of water and started to let it go down the drain. My sink is connected to my dishwasher which has an open pipe in the corner of the kitchen that the dishwasher then drains into. When Bronwyn let the water start going down the sink drain, the pipe for the dishwasher started gushing out water all over the floor! We quickly plugged the sink back up to prevent any more water from going down and called quits on dishes for the night.

The next morning I saw that both the sink and the pipe had drained overnight. I tired flushing things out with baking soda and vinegar followed by boiling water to see if that would fix the clog. It did nothing and I could only get a few cups of water down the dishwasher pipe before the water rose to the top. Not a good sign. A little while later, I headed into the crawl space to see if I could figure out what was going on (a lofty idea for someone as naive as I am about plumbing!). I am not particularly fond of my crawl space. It’s damp and filled with spiders and there’s lingering molten tar that dripped down between the floor boards when I accidentally liquified the tar mastic in the kitchen . I should probably replace the plastic tarps that are affected by the latter… but that would just add more to my to-do list! So instead I leave it be and crawl through the grime. The crawl space is accessed through this half-door in the corner of the basement. You can see it here at the edge of this photo from when I first toured the house.

So, I climbed into the crawl space and opened up the flexible coupling (this type) with a screw driver to see if I could identify the problem. It’s one of those rubber-like couplings with metal clamps on either end, so it’s easy enough to loosen the clamps and open the pipe. Of course, idiotically, I didn’t think my plan through. When I opened the clamp and pulled it up the pipe, the whole thing started gushing dirty dishwater in all directions! It started off by splashing right up into my face of course! Yuck!

After I drained an unexpectedly large amount of water all over myself, I removed myself from the dark cavity that is my crawl space and texted my neighbor Erik. This was clearly over my head. He popped over shortly after with a snake and we stuck that into the pipe where I’d opened the coupling. After getting the snake in nothing seemed to be happening, but when Erik went to remove the snake, the whole pipe moved with it. Uh oh. I reached out to steady the pipe and realized it didn’t even matter! The whole pipe section had just snapped off. And snapped off not close to where we were snaking, but farther down the pipe. See the dirt in the picture above? That’s where it broke, buried down in that! So I slathered a smile on my face and pretended I loved the crawl space and got to work.

I took out a shovel and started digging in the dirt to figure out where the pipe had broken and found the house’s 4″ cast iron sewer line. The old galvanized pipe that connected the sink and dishwasher drains to the sewer had corroded away and the slight motion from snaking it, broke it off right where it connected to the sewer. Not good! Because it was broken, I couldn’t even get it out of the sewer line and simply sub in a new section of pipe. Nope, I had to get way more involved and replace a section of the sewer line itself! Erik headed out with the promise to help me tomorrow. After I finished digging out around the pipe I called it quits for the night and stuffed a rag in the broken off pipe to prevent the sewer gases from filling the basement. The only good thing about this clog is that it caused me to find this corroded (now broken) pipe. This pipe had been leaking into the soil hidden below where I’d be able to see it if I had not been digging!

The copper pipe that runs perpendicular to the sewer line above is a random pipe that does not connect to anything. Helpful vestiges of plumbings past!

There’s a special tool that would have made cutting the cast iron sewer line quick and easy. It’s a ratcheting soil pipe cutter. You can buy one for about a billion dollars or rent one. Home Depot rents ’em, but the store closest to me didn’t have one so I went to a local tool rental. They pulled it out of the back and I took one look and teared up. There was no way this could work. My basement wall is oddly angled on this side. Guess why? Because the sewer line was built first. And when they carved out the basement, rather than moving the pipe and making a straight wall, the built the concrete wall about 1/2″ away from the sewer line. The ratcheting pipe cutter gears were about 1.25″. It wasn’t going to fit!

On to plan B! Sawzalling the cast iron pipe with diamond blades. I headed to Home Depot to grab that and the rest of the supplies needed. Two cast iron sawzall blades for $15 buck each was a lot better than paying a plumber. I also headed to the pipe section to look for the proper couplings and accoutrements. Of course, I have no idea what I’m doing so I just took out a ton of parts and put them on the floor and then texted pictures like this to Erik until my phone died and I was left to fend for myself in the plumbing section!

I ended up with a four inch wye pipe with a 2″ offshoot and then because I couldn’t remember if I needed a 2″ or 1.5″ pipe to connect to the sink and dishwasher lines, I just bought a bunch of parts for both sizes. I definitely prefer to err on the side of way too many things to return than oh hey let’s run back to Home Depot four times. So $200 later, I had everything I could possibly use.

I bought Erik a bagel sandwich for lunch which is definitely not enough to repay him for the next several hours he spent helping me in the crawl space. I set up the light and then I clambered into the crawl space with my corded sawzall and Erik followed with his battery powered sawzall. We then spent the next fourty or so minutes crouched over simultaneously sawzalling at the cast iron pipe. It took a LOT of effort and was so very uncomfortable and not fun. And of course Erik did his section faster than me and then traded so he could finish off my cut. Apparently he’s stronger or something boring like that. Ugh!

But then the cast iron pipe was completely cut! It was a wonderful sight to see! 4 inches over 40 mins, but hey, who’s counting? Look at this glorious exposed sewage. Just delightful!

Then it was time to get the fittings together. Ugh. This was a gross project. First I got the special cast iron to ABS pipe couplings fit over both ends of the cast iron. That took some work to get the rubber fitting over and then I slid the double clamp over the rubber fitting and started lining up the rest of the pipes. Erik cut a short section of 4″ pipe to fit into the coupling. The wye went in next and then Erik cut another 4″ pipe section to fit the remaining part.

Stuffing the section of pipe into the wye and then into the coupling was a bit of a challenge. But about 5 minutes of fanangling later and I made it work. But then, of course, I had to take everything apart to glue it all. I used ABS pipe glue stuff which smells disgusting and sticks to everything. It has a ball to apply and you put glue on both ends about as wide as the radius of the pipe.

The rest of the pipe fit more easily together, it’s like highstakes marble races, but the marbles are sewage. Again, delightful! A 2″ to 1.5″ pipe converter went on the main wye first, then a 45° angle, then a section of 1.5″ pipe, then a 90° angle.

That then connected to another forked wye pipe, this one was 1.5″ all around. That allowed me to slip on the original pipes from the dishwasher and sink drains into the new wye with a couple short sections of 1.5″ pipe and a whole lotta glue.

A bit of tightening of the coupling clamps later and the plumbing was all connected!

Erik ran upstairs to flush the toilets a couple times and run the shower to test the lines. A couple more rotations to tighten the clamps on the sewer line later, we were leak free and basically done! I threw the rest of the dirt back into the space and called it quits. Typing this took no time at all, but in reality I climbed into the crawl space at about 12:30pm that day and came out about 4:30 and then spent and hour and half cleaning up. Not too shabby, but it doesn’t count the couple hours of digging from the day before!

It’s funny how projects like these: gross and dirty, but quick can make you feel so accomplished. I could never have done this without my neighbor though. I simply wouldn’t have had the confidence to even try. But saving several hundred dollars sure feels good! Plus the more of these I do, the more confident I get to try this on the next round. Though I hope that next round is a long ways away!

In the meantime, I saved a whole lot of money. At least 4-6 hours of a plumber’s work so let’s call that $400-$600. And honestly, it wasn’t all that hard once I got going. I think I could do it again… if I wanted to! Has anyone else tried plumbing things? How’d your project go? Did your DIY job hold up over time? There’s one connection I’m a little nervous about…!

Advertisements

Bathroom Progress – Plumbing and Electrical!

After demo’ing the main bathroom at Berrybrier I’d been ping ponging between my house and my cousin Kristen’s basement for showers and sleeping. In the midst of all the other chaos going on at Berrybrier: the new roof, electrical work, the extremely invasive floor rehab, and the exterior painting fiasco, the bathroom plumbing was completed! I hired a plumber to do the rough in plumbing only, figuring it couldn’t be all that hard to install the fixtures so I might as well do that part myself. Also, I’m cheap frugal.

The rough in was no small job though! It involved new toilet, sink, and shower locations as well as running new pex lines from the main house inline. He also installed a shower surround which is part of my grand scheme to eventually demo this and flip the location of this shower to the other side, giving me a master bathroom. (There’s a floor plan here if you want to see how that could work.) But that’s a project for years out. For now, My crazytown bathroom seriously needed a new floor plan! See how the wall is recessed starting at the mirror? When they installed a larger bathtub, they stole 10″ of space from the room behind it and moved the plumbing back. There was an electrical fuse box at the top of the wall though, so they left that part in its original location. They didn’t build a proper new wall though, so it was a bit of a nightmare of sistered in framing pieces all crazy. The mirror makes the bump back a little difficult to see, but if you stare hard enough at the below it comes together, especially once you notice the mirror is crooked!

DSC_0280

Before the plumber could install the shower surround I had to rebuild this wall and make it more stable. It wasn’t structural, but I didn’t trust the existing hobnobbed-together framing. I chose to reframe the wall at the original location, removing ten inches from this main bathroom and gaining the original 10 inches in the half bathroom off my bedroom that desperately needed some extra space. I also needed to fur out the wall on the right side of this bathroomto hug in the shower surround which was 48″ wide since bathroom was 52″wide. I psyched myself up about reframing this wall for several days, talked about it a bunch with Erik (my contractor next door neighbor who saves me from my own stupidity), and rented a framing nail gun and air compressor from the local Tool Lending Library.

The electricians had begun working on the house this week and when I got home the night I planned to frame the wall… the electricity was off in the house. Arg! I was mad, because there was no way I could frame a wall in the dark without any electricity. No!! I needed to get the wall built that night so the plumber could install the shower surround onto it the next day! This is why renovation is stressful! You’re juggling about ten different schedules.

I stormed around the outside of the house ripping off the old cable cords the painters had refused to remove and pulling the lattice off the front porch rail. I could see Erik who was working on his house peering out his dining room window at the crazy lady yanking off the lattice in a bit of a rage nextdoor . He knew my plan was to reframe the wall that night.  I finished ripping off the lattice and went inside my house where I’d left my phone. I picked it up and read a text from Erik, “I thought you were building that wall tonight?” Simultaneously I heard a knock on the kitchen door. I opened it and there stool Erik, toolbelt on and drill in hand. “I came to help frame the wall!”

“I don’t have any electricity! I can’t do this in the dark!” I said. He didn’t falter, “Let me go get my battery powered light!” Within a few minutes, the whole bathroom was lit up by a surprisingly small light. But then my rented air compressor didn’t get to a strong enough pressure. Erik went and got his air compressor, but that didn’t work either. Maybe it was the nail gun itself? Or the fact that we were running it off of an extension cord that ran from Erik’s garage, over the fence between our houses, and through my backdoor?

So with that off the table, we turned to screws and his impact driver. But then he said I’d bought the wrong kind of screws and ran over to his house where he had better ones. And then he cut all the 2x4s with his circular saw using his foot as a stand in about 2 seconds. Then after watching me drive in one screw, he said, “Why don’t I do the next one? I’d let you continue, but I think we both want to finish this tonight…” And then my neighbor built me a wall while I stood outside the bathroom and watched. So… he’s a nice guy.

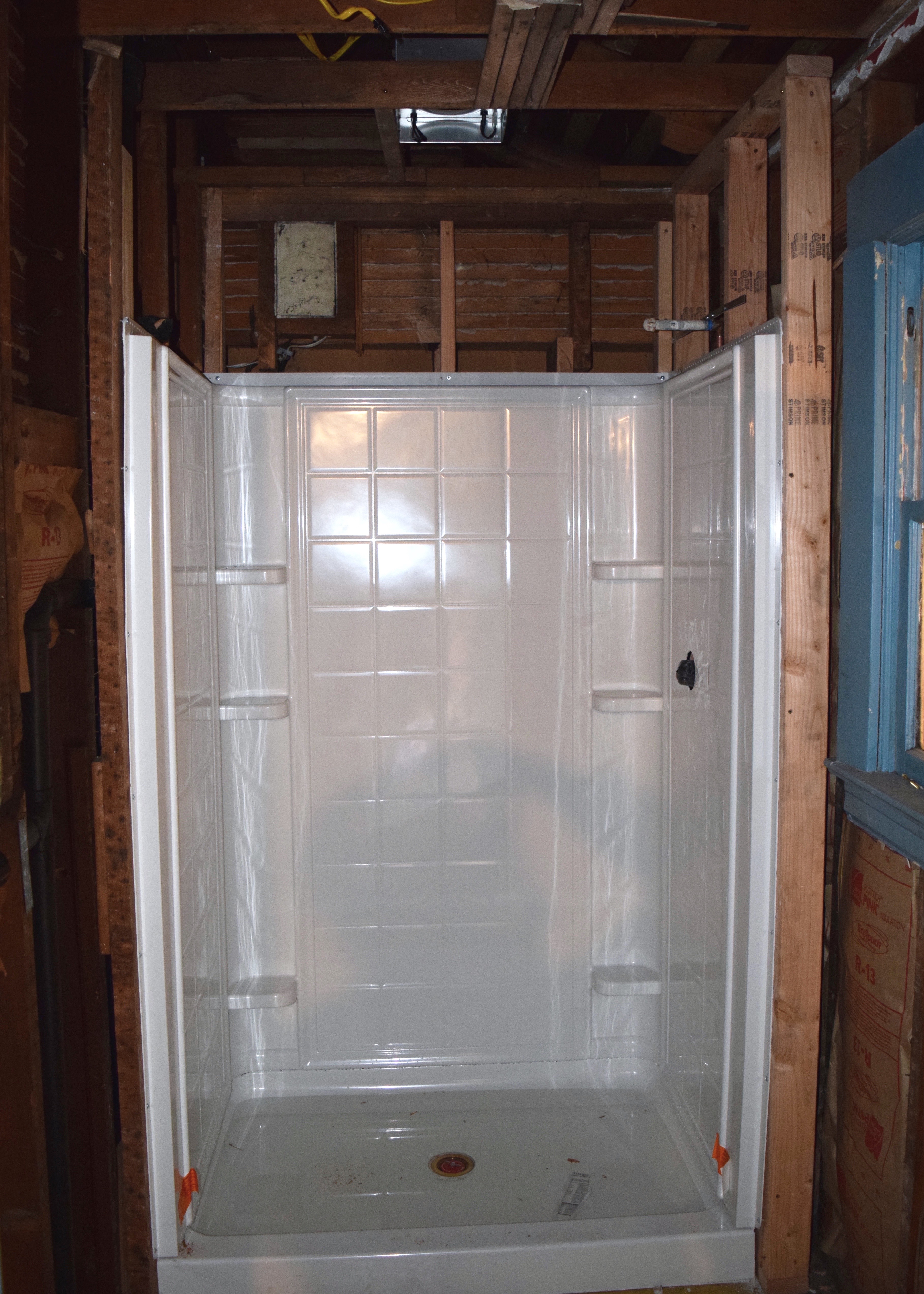

I don’t even have a picture of my newly framed walls because it was crazy dark the night the wall got built and the next day the plumber arrived to install the new water lines and my new shower surround right in front of it. So if you look closely at the picture below you can tell which 2x4s look newer and those are the ones that make the new walls.

Berrybrier | Shower surround.jpg

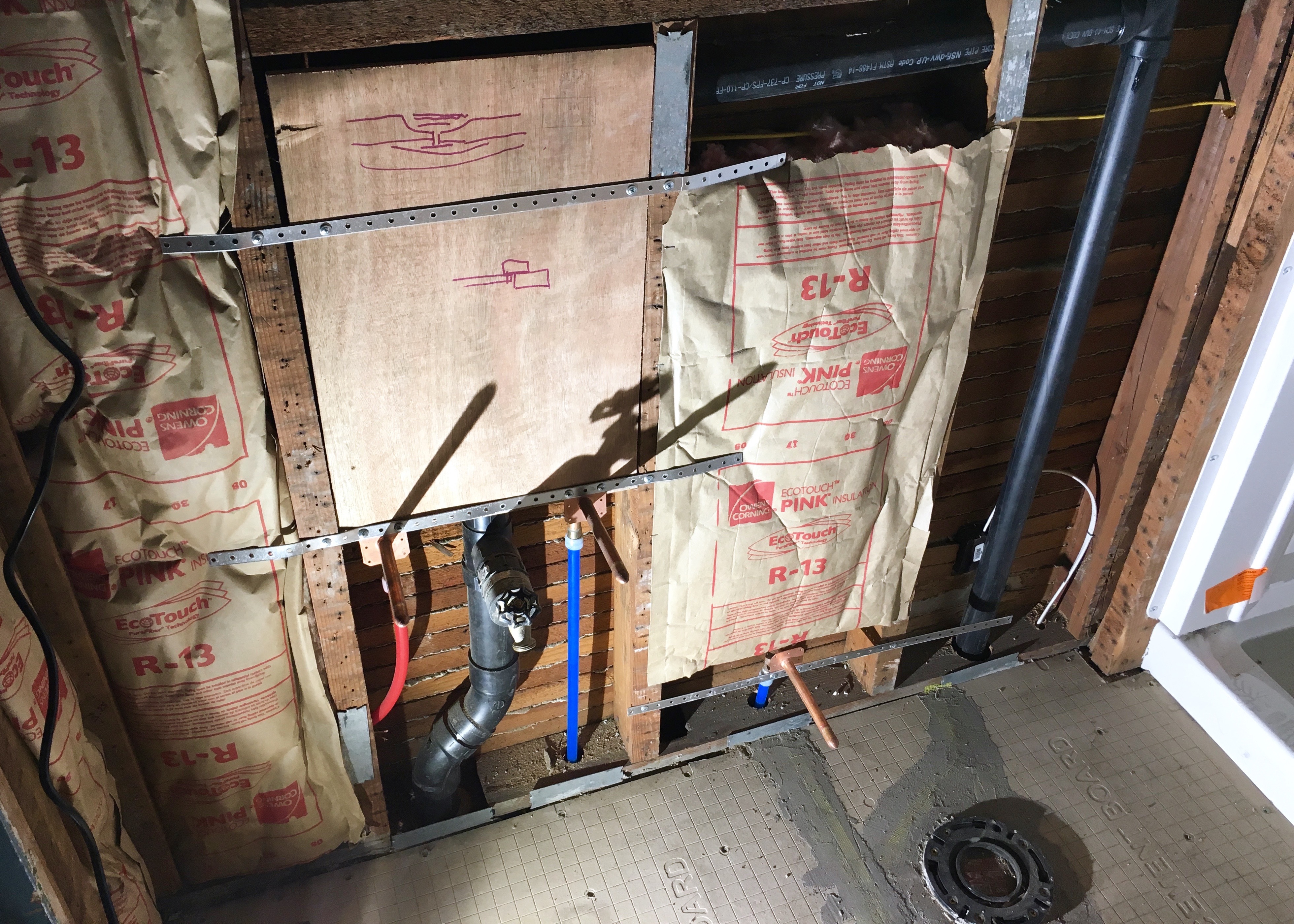

The plumber even put in blocking for my new sink as well as getting the necessary new pipes for my new plumbing locations. He also reworked the vent pipes and an outside gutter that was draining into my sewer line. I didn’t quite expect butt ends of copper pipe to be the rough-in plumbing, but I put “figuring out how to cut pipe and install water shut off valves” on my list of things to stress about later. Overall, I paid him $1178 to move all this around which was a pretty good deal for this extent of work. I’ve heard of people being charged more than that just to move a toilet! I’m lucky to have basement/crawl space access to all the pipes, allowing for an easier install.Berrybrier | Plumbing Rough In.jpg

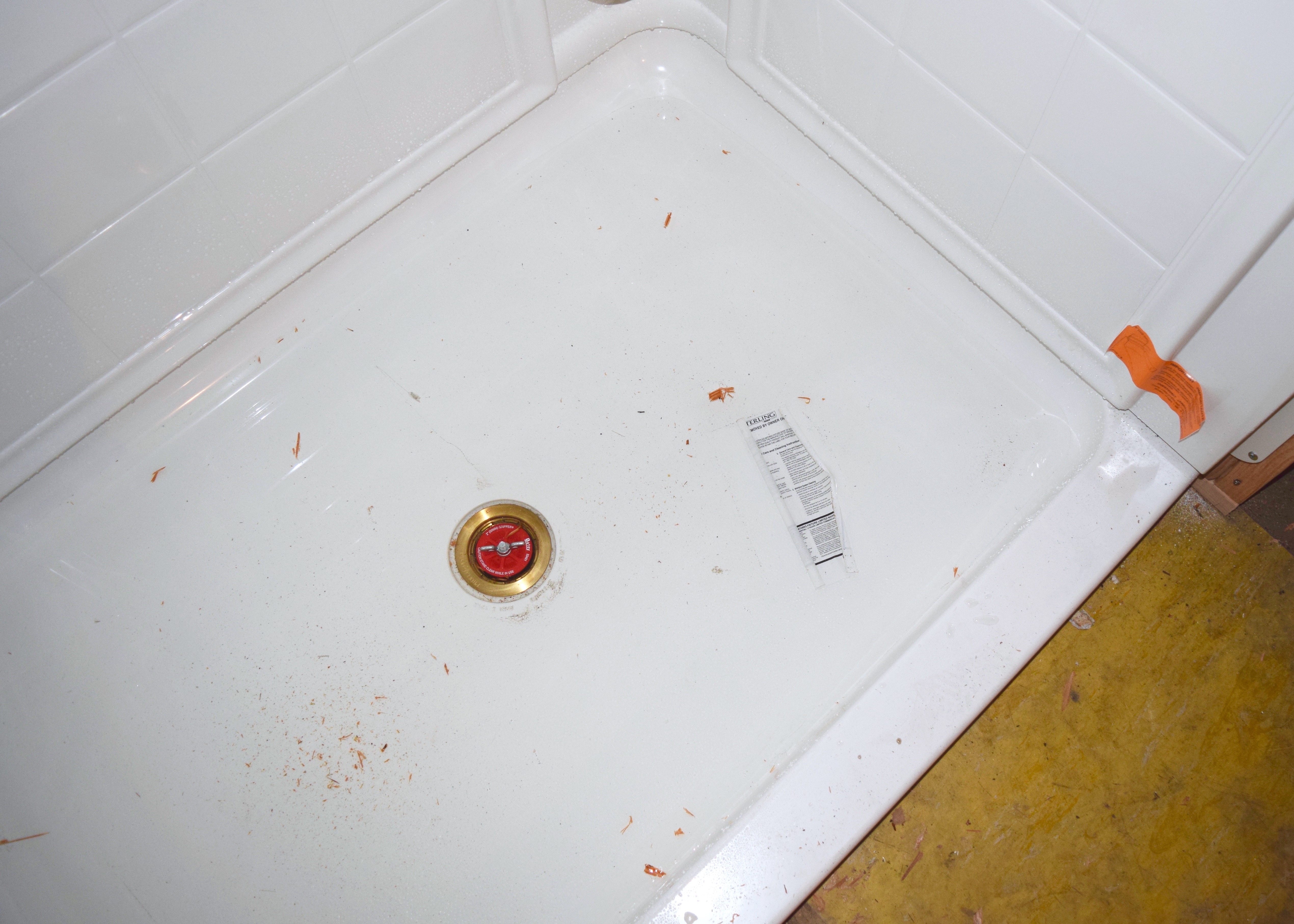

You can see in the picture of that the shower pan was full of water too! It had to stay that way until the plumbing inspection, which of course was two weeks out. It got pretty gross!

Berrybrier | Plugged Drain.jpg

And because, literally nothing goes smoothly during renovation, when – two weeks later – the inspector came through, he walked into the house and saw some coats, vacated the house, and failed the inspection. Apparently although the Portland Bureau of Development Services states in numerous places online and in pamphlets that inspectors can review unoccupied residences without a representative of the owner, by “occupied” they really mean is there can be no personal belongings on site. At the time I was living at my cousin Kristen’s, but I hadn’t removed all my personal belongings from the house! I called the Bureau and begged them to reschedule my inspection without a two week wait. Luckily, they understood my interpretation of their rule and rescheduled the inspection for two days later, provided a representative of the owner was on site.

My angel cousin Kristen volunteered to wait at the house for the inspection since she typically worked from home on that day. The inspection sheet was supposed to come out at 8:00 that morning and provide a 3 hour block of time when the inspection would take place. I checked at 8:00am. I wasn’t on the list! I called the Bureau in a panic. Every day I didn’t get an inspection was another day I couldn’t live at my house!

Again, I lucked out and got a very sweet member of the scheduling department who told me my previous help had gone through 4 out of 5 steps to schedule my inspection, but failed to actually schedule it. However, they were able to squeeze me on the existing job list that day! Woohoo! So the inspection happened and it passed on the condition I open a mechanical permit for my new vent fan.

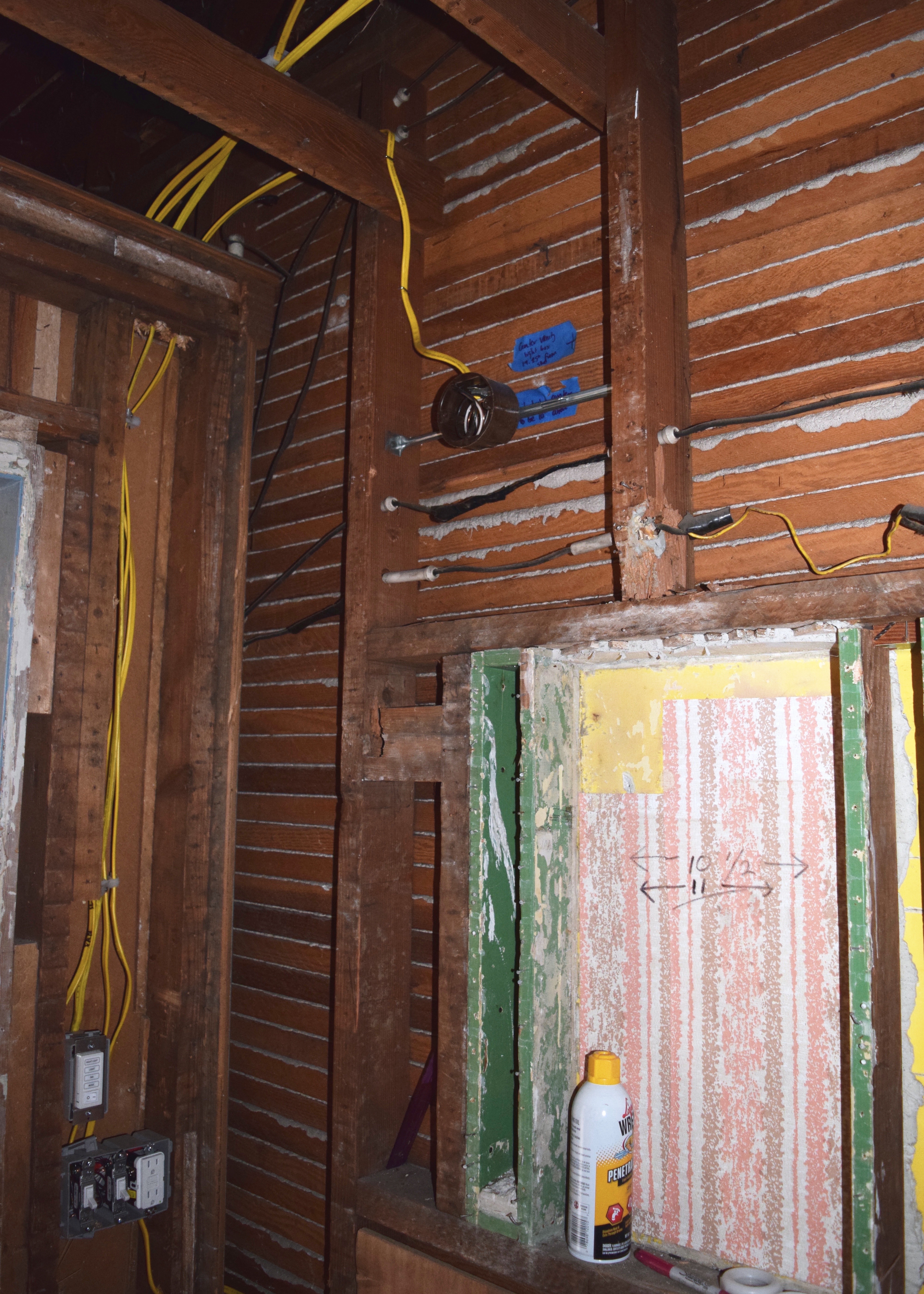

Then the electricians went in and installed the boxes and wires for a new sconce, can light, and vent fan! All of a sudden the room was coming together! I was so excited to be able to take the reins and start knocking out the rest of the work in this room myself!

Berrybrier | Sconce Location.jpg

And with that I was one step closer to having a bathroom! Wouldn’t it be nice to shower in my own house again?
